Doepfer A-182-1 Switched Multiples

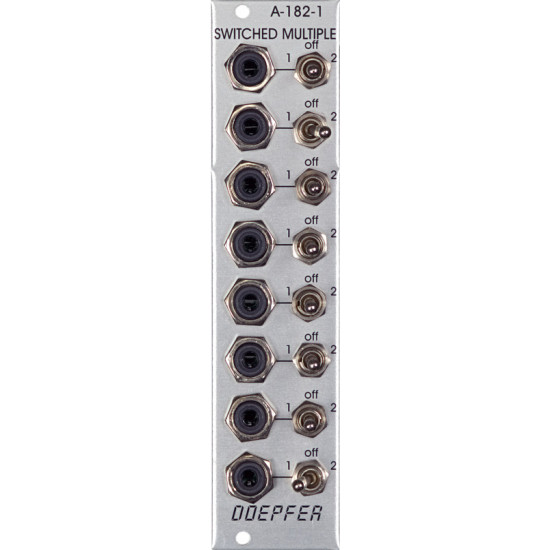

Module A-182-1 is a simple passive multi-connector similar to the multiples modules A-180-1/A-180-2. In contrast to modules A-180-1/2 each socket is equipped with a 3-position switch that allows to connect the corresponding socket to the internal bus #1 (left position), bus #2 (right position) or to turn the socket off (center position).

Examples:

• all switches in left position or all switches in right position: 8-fold multiple

• four switches in left position and four switches in right position: two 4-fold multiple

• X switches in left position, Y switches in right position and Z switches in center position: two separate multiples with some sockets turned off

Remark: The term "bus" in the module description has nothing to do with the A-100 bus.

Breite/Width: 6 TE / 6 HP / 30.0 mm
Tiefe/Depth: 20 mm (gemessen ab der Rückseite der Frontplatte / measured from the rear side of the front panel)
Strombedarf/Current: +0mA (+12V) / -0mA (-12V)
