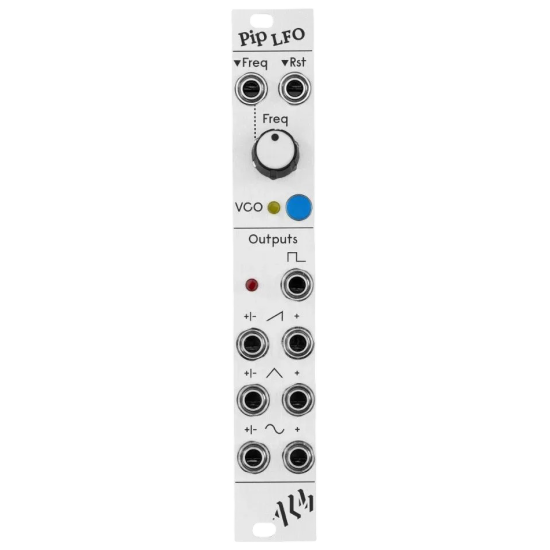

ALM Busy Circuits ALM048 Pip LFO

The ‘Pip LFO’ is a compact 4HP all analogue low frequency oscillator with a wide frequency range, voltage control, numerous outputs, reset input and a VCO mode.

LFO speed is set via a manual control and voltage control input. There is a unipolar square wave output along with both bipolar and uni-polar triangle, saw and sine waveform outputs. When VCO mode is activated, the frequency jumps to audio range and will track V/Oct for approx 5 octaves. A reset input allows the LFO waveform cycle to be reset and produces hard sync functionality in VCO mode.

Features

• Manual and CV control over LFO frequency.
• Frequency range from approx 0.01Hz to 20Khz+
• Square, Triangle, Saw and Sine simultaneous waveform outputs.
• Uni and Bipolar outputs.
• Audible frequency ‘VCO’ mode with V/Octave tracking.
• LED frequency indication.
• External reset/sync input.
• Skiff friendly with reverse power protection.
• 2 Year Warranty.
• Made in England.
• • Technical Specifications
  • Size: 4HP
  • Power: +12V 40mA / -12V 20mA
  • Depth: 32mm (approx)
