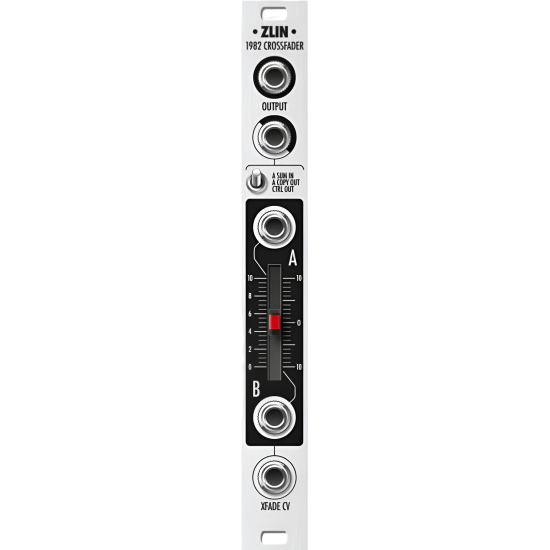

Xaoc Devices Zlin

Zlin [zlin] is a small utility module that can act as an audio signal and CV cross-fader, a linear VCA with drone control, a ducking VCA, or a feedback controller. It is a tool perfect for any modular environment – a missing piece of the puzzle greatly enhancing the creative potential of any system. Use it to construct unusual waveforms, simulate classic subtractive-style dynamic timbre shaping without the need for any filters, or simply morph between rich signals.

As Zlin is DC-coupled and built around a modern high-quality dual VCA chip, it delivers a wide dynamic range with low noise and distortion. A slider potentiometer with an illuminated LED provides visual feedback of the module’s state. An auxiliary jack with three selectable functions adds further flexibility for creative patching.

Features

Voltage and manually controlled crossfader

Linear, DC-coupled VCA with drone and duck functions

Feedback controller

Visual indication of mix ratio

AUX jack for patching tricks

Technical Details

Eurorack synth compatible

3hp, 32mm deep (inluding cable bracket)

Current draw: +25mA / -25mA

Reverse power protection
