Modor Music DR-2

Modor Music DR-2
Modor Music DR-2
New Pre-Order
Modor Music DR-2
Modor Music DR-2
Modor Music DR-2
This product qualifies for free shipping
Free shipping For EU
  • Stock: Pre-Order
  • Model: MODOR-DR-2
1,749.00€
Ex Tax: 1,469.75€

The DR-2 is a 6 instrument digital DSP drum synth, with a built-in 128-step drum sequencer. At first sight, it will feel recognizable in some ways. There are sounds that will remind you of the good old classic drum machines, and the step sequencer will get you building drum riffs from the first second you touch it. But Modor uses digital sound synthesis to get beyond the possibilities of a classic drum machine, and the step sequencer does more than just hitting drums...

First of all: although it's digital, the DR-2 is not about sampling. It's a drum synthesizer, like a classic analog drum machine, but it uses digital sound synthesis algorithms instead of analog circuitry. There are no samples in the DR-2, and there's no sample memory.

Just like the Modor NF-1, the DR-2 is not build to recreate the classics of the past. The DR-2 uses digital sound synthesis to innovate drum sounds and rhythms. Many sounds will be recognizable. It is possible to make classic sounding bass drums, snares and rimshots. It's not difficult to program classic floorfillers with the DR-2. But with 12 synthesis parameters per drum, you'll easily find yourself creating your own individual sound.


POLYPHONY
  • 6 independent drum instruments



SEQUENCER
  • 128-step, 32nd note sequencer
  • Pattern length can be altered
  • Swing and Swing32 (for 32nd notes) parameters
  • Accents per instrument and a general Accent line
  • Flams, Tuplets, Breaks and Reverses
  • Parameter Locks
  • Pattern and Song modes
  • 2 M:N stretched 'polyclocks'



DRUM MODELS
  • Bass drums: Drive, Noise, Square, String and Rumble BD models
  • Snare drums: Basic, Marching, Analog and Electro Snare models
  • Cymbals: Hi-hat, Ride, Crash cymbal and Filter HH models
  • Toms
  • Tenor drum
  • Claps and Filter Claps models
  • Rimshot
  • Rattle
  • Cowbell
  • Glass Bottle
  • Bassline synths: Saw, Squ, Sin and FM models
  • More models can (and will) be added in future firmware upgrades



EFFECTS
  • Distortion
  • Tilt Filter
  • Compressor with sidechaining
  • Parametric Equaliser



MEMORY
  • 64 drumsets of 6 instruments
  • 96 patterns with parameter locks
  • 32 songs of up to 60 patterns

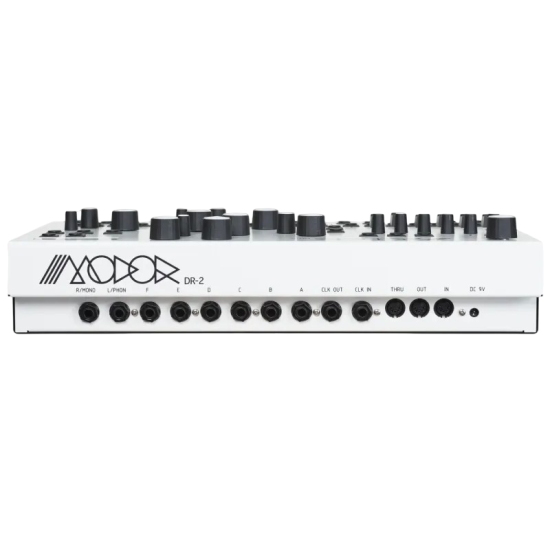

CONNECTIONS
  • 9V, 600mA adapter connection, positive voltage on center pin
  • MIDI IN/THRU/OUT connections, 3x 5-pin DIN connection
  • Clock In/Out connections, 2x 6.35mm mono jack
  • Audio Instrument Outputs/Inserts, 6x 6.35mm TRS or mono jack, unbalanced
  • Audio Left/Stereo output, 6.35mm TRS or mono jack, unbalanced, capable of driving headphones
  • Audio Right output, 6.35mm mono jack, unbalanced

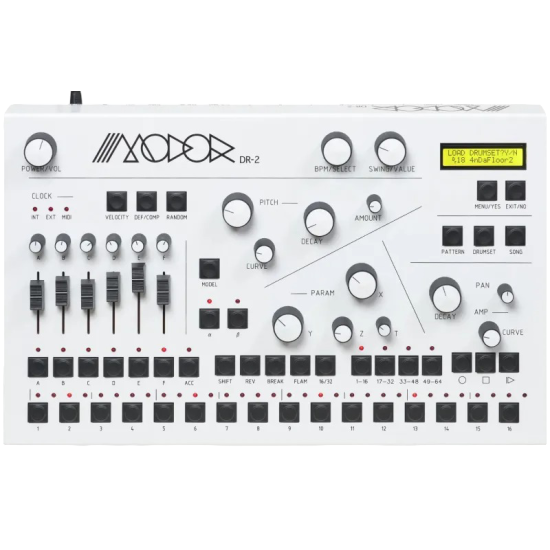

FRONT PANEL CONTROLS
  • 6 volume sliders
  • 18 rotary knobs
  • 46 pushbuttons
  • 1 rotary encoder
  • 1 Power switch/volume knob



DISPLAY
  • 16x2 green backlit LCD display, latin and cyrillic characters



MIDI
  • Drum sequencer also generates Midi notes
  • Drums can be played using Note On/Offs from other Midi gear
  • All 'continuous' sound parameters accept and transmit Midi Control Changes in realtime
  • Pattern and drumset switching using Midi Program Changes
  • Drumset, pattern and song exchanges via Sysex Dumps
  • Firmware upgrades via Sysex



MEASUREMENTS
  • Width: 440mm without rack ears, 480mm with rack ears (19")
  • Height: 267mm (10.5"/ 6U)
  • Depth: 40mm (front) - 80mm (back)
  • Weight: +/- 6kg



RACK MOUNTABLE
  • Height: 6 rack units
  • Recessed backside connections to ease rack mounting (no lost rack space above)
  • Rack mounting ears included
