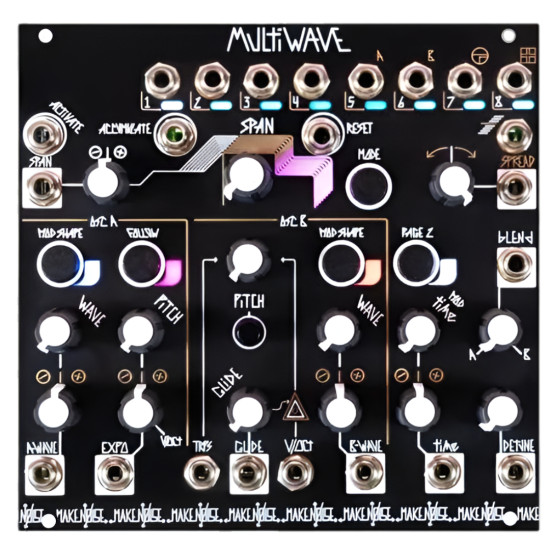

Make Noise MultiWave

MultiWAVE is an 8-channel dual wavetable oscillator for the New Universal Synthesizer System or any Eurorack modular synthesizer. It uses a single set of controls to generate audio waveforms at eight independent channel outputs.Each of the eight MultiWAVE channels contains two independent wavetable oscillators, Osc A and Osc B, each loading its own wavetable with variable frequency, modulation, and wavetable position. MultiWAVE includes an output header for creating pre-patched connections to the audio signal inputs of two QXG modules. When grouped up with PoliMATHS it creates the 8-channel core of the New Universal Synthesizer System.

FEATURES

8-channel dual wavetable oscillator with a single set of controls

Sequence A and B oscillators (per channel) independently or together via 4 Follow modes

Generate polyphonic activations from monophonic sequences using Modulation Dissemination, Span modes, Spread, and Accumulate.

Variable timbre per channel via Spread and Modulation Dissemination

Independent v/o inputs per oscillator and global transpose v/o input

Built-in polyphonic quantizer

Modulatable polyphonic detune, and glide.

Works as a Harmonic Oscillator with detune turned fully clock wise

Modulate wavetables using built-in MultiMod LFO

Independent modulation depth and shape per oscillator.

Modulation Time and depth variable per voice via spread and modulation dissemination

Ships with custom Make Noise wavetables developed from Make Noise modules

Smooth interpolation between waveforms

Compatible with Waveedit format wavetables

Each wavetable contains 64 waves

Capable of storing 8 banks of 8 wavetables.

Activate channels in multiple voltage-controllable Span modes

In arbitrary order using Channel Index

Sequentially with variable channel count step in Round

Via variable per channel clock divisions using Parallel

Oscillator Core of the New Universal Synthesizer System

Designed for seamless use with PoliMATHS, QXG, and future N.U.S.S. modules

Chain to pair of QXG for immediate 8-channel mixing, with amplitude control via PoliMATHS for 8-channel modular hybrid Polysynth.

SPECS

Max Depth
(incl. power cable): 43mm

Power:
250mA @+12V
5mA @-12V
