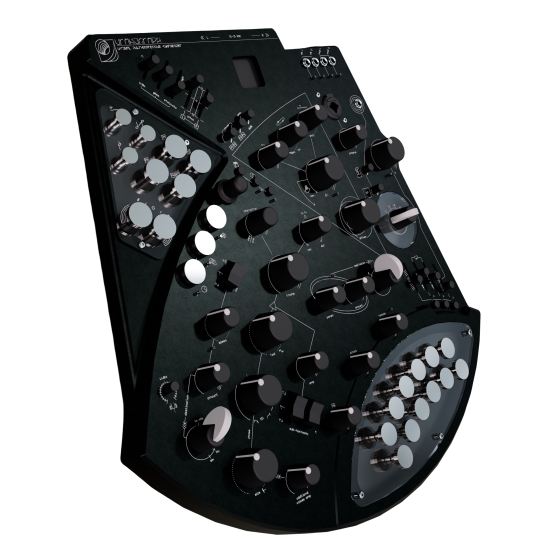

Clank Uranograph

Beneath its alien surface, Uranograph generates its expansive tonal palette from a unique blend of additive synthesis and digital audio processing. A core sine wave oscillator can be expanded into wildly rich timbres with multiple classic west-coast techniques like FM, AM, and wavefolding, while phase distortion and spectral expansion invokes a serrated digital edge. These tones can then be split in three by the harmonizing Alias effect, creating chord-like voicings on each singular note. Add weight and depth with the onboard sub-oscillator, and employ the dedicated modulation oscillator as an additional timbre shaping tool or extra voice in Uranograph's esoteric chorus of tones. Finally, sounds are shaped into notes with distinctly organic presence thanks to the integrated VCA and low pass gate, adding anything from resonant warmth or raucous self-oscillation.

Designed for captivating instrumental performance all on its own, Uranograph is equipped with space-grade effects that take its sound generators to new heights. A stereo delay seamlessly blends between ultra-fast timbral resonance and strict tempo synchronization, moving between skronk-forward squelches and rhythmic undulation in an instant. Reverb on a single knob spans between subtle enhancement and air-melting, ethereal environments, adding a rich depth to your sound in any setting. All of this capable sound engine is then fed into a double-reel tape-inspired looper, enabling the performer to layer sounds into otherworldly textural masses, polyrhythmic loops, and more. With its onboard, premium external input, you can also process external sounds through Uranograph, promising endless possibilities with creative studio patching.

The first standalone instrument from Clank, this unique device offers a deep well of musical potential waiting to be discovered. Uranograph's bespoke interface outstretches a welcoming hand that seeks your own, ushering you into a vibrant world of sonic transformation worthy of a lifetime of practice.

• Expressive touch-controlled synthesizer with onboard effects and looping
• Fully tunable capacitive keyboard with velocity and aftertouch
• 50+ preloaded tuning layouts in unique and microtonal scales
• Dedicated ModKey keyboard controls articulation, transposition, and assignable modulation
• Harmonic and phase manipulation based sound engine for vast timbral range
• West-coast techniques like AM, FM, and wavefolding
• CZ-inspired phase manipulation adds digital edge
• Alias harmonizer effect creates three-note chord voicings
• Sub-oscillator with multiple waveshapes and octave depths
• Modulation oscillator useful for timbral manipulation or additional sound source
• Resonant VCA/LPG
• Stereo delay with smooth control between micro-timing resonance and tempo-locked repeats
• Reverb effect with wide range on a single knob control
• Double-reel tape looper for creating layered performances
• XLR input and preamp for processing external sounds through FX and looper
• Integrated metronome for live looping routed only to headphone output
• Robust aluminum enclosure built to last
