Clank Thererec

Dual Channel Movement Recorder

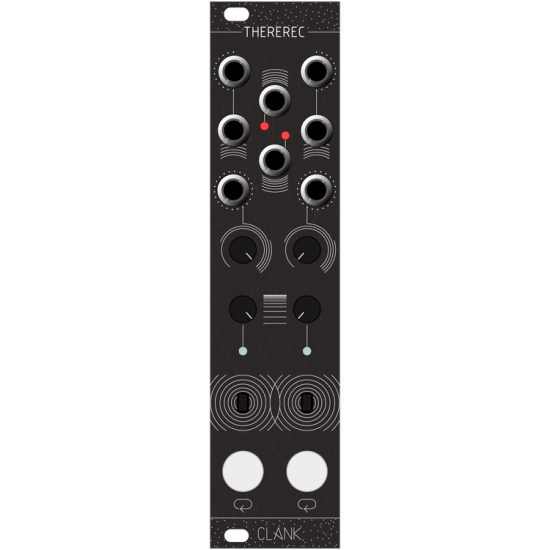

Thererec is a 6hp smart dual function generator, based on a totally different approach!

All the Attack/Decay thing has been replaced by two modern proximity sensors, and this not only saved a lot of space but it also turned Thererec into a whole new thing: a fusion between THEREmin gestural expressiveness and a tape RECorder,

Thererec, indeed, can quickly capture your hand movements and translate them into complex Envelopes and LFOs adding a whole lot of expressiveness to your set.

Once recorded, your movements can be mangled in both time and amplitude, they can be cycled or triggered one-shot mode, letting you crate complex but synchronized control voltage streams

One simple movement with immediate feedback: move your fingers, listen and connect yourself to the environment. Your body will do the rest.

HOW DOES IT WORKS?
Thererec sensors will track your movements to generate a voltage flow, the LEDs and the CV outputs will reflect those movements.

To arm a channel press the loop button.
Entering in the sensor field (4-5cm) will automatically start recording.
Press the loop button again to stop the take, double tap it to clear.

Playback has two operation modes, indicated by the LEDs color:
White: the playback can be started by hitting the sensor or with an external gate. It will be played once.
Blue: the recording is played in loop. To sync it to a rhythm, re-trigger it as you will do in the white mode.

In both modes, from the gate outputs, Thererec will emit a short pulse at the end of the reproduction and a variable gate when you hit the sensors by hand.

Hold down the loop button[9] to cycle between modes. Keep it pressed to save the recording into the memory (the LED will blink in purple).

Playback speed can be altered dramatically with the speed control.
Turn the knob CCW to make it slower, CW for a faster reproduction and half way to return to the original speed.
Speed can also be changed with an external CV, the speed knob will now work as an attenuverter of the applied voltage.

Thererec CV outputs have a 8Volts range, use the range knobs to scale them down.
