myVolts PDT19P1

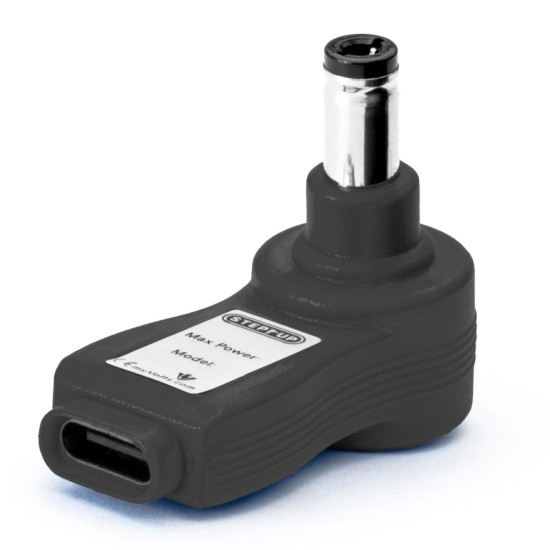

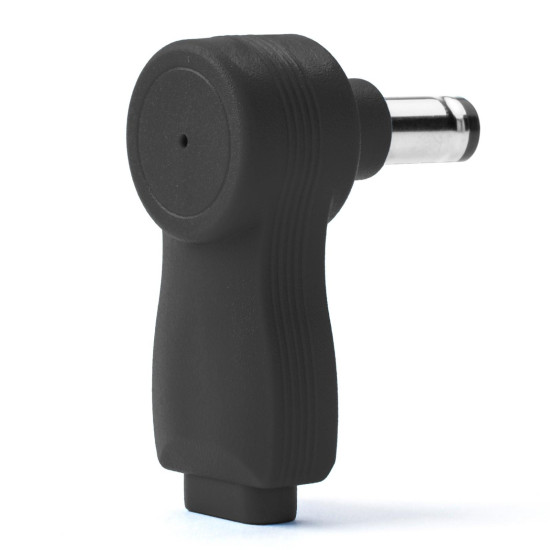

myVolts USB-C PD Step Up Tip, 19V c+ve 2.1mm/2.5mm

myVolts Step-Up Power Tips are part of a new range of power products from myVolts that lets you power your gear from USB-C.

They are small tips that fit on the end of a USB-C cable, changing the output and size so you can power gear that uses voltages other than 5V from USB. This gives freedom and flexibility to your setups, letting you play wherever you are.

Smaller, smarter more powerful, Step-Up provides the correct voltage for your device using USB Power Delivery and Quick Charge Protocols*.

Spec:

• Output Voltage: 19V DC
• Input: USB-C
• Protocols: PD3.0, QC3.0
• Polarity: center positive
• Power Output: 65W (3.4A at 19V)
• DC Tip: 2.1mm/2.5mm x 5.5mm (spring-loaded tip suits a wide range of devices)

* Please note that in order to use 'Step-Up' Power Tips, you will need a power source from products within the 'Step Up' range, or at least those that support the appropriate QC or PD protocol.


Sample compatibility list:

• 4MS Row Power 35, RP35 Eurorack power supply
• Acoustic Solutions Aluminium BT Bluetooth speaker
• Akai MPC One Controller
• Akai MPC Live II Groovebox
• Akai MPC One Retro Groovebox
• Akai Force Production system
• Akai MPC X Groovebox / Sampler
• Akai MPC Live Groovebox
• Akai MPC One+ Controller
• Anchor Audio MEGA2, MEGA2-U2, MEGA2-U4, MEGA2-X PA sytem
• Befaco PowSkiff Power Supply Module
• Denon DJ Prime GO DJ controller
• Fosi Audio TPA3116 2 Channel Amplifier
• Fosi Audio BT20A Bluetooth Amplifier
• Fosi Audio TB10A, TPA3116 Bluetooth 5.0 Amplifier Stereo Audio Receiver
• Harman Kardon Onyx Studio Portable Wireless speaker
• Harmon Kardon Onyx Studio 1 Wireless speaker
• Harmon Kardon F19V-2C-DC PSU part
• Headrush Gigboard Effects processor
• Headrush Looperboard Effects processor
• JBL Xtreme, Xtreme 2 Bluetooth speaker
• Kurzweil M110 Digital Piano
• Nobsound NS-13G, NS-15G Bluetooth Amplifier
• Nobsound NS-20G Bluetooth Amplifier
• Positive Grid Spark 40 Amplifier
• Positive Grid Spark Pearl 40W Guitar amp
