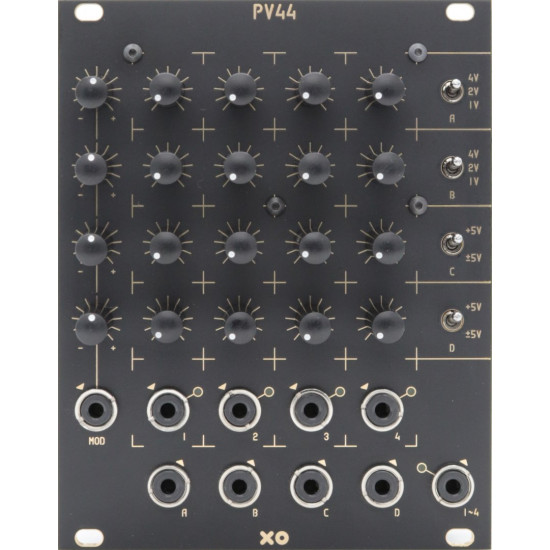

XODES PV44

4 x 4 Preset Voltages

PV44 lets you select between 4 groups of 4 voltages via prioritized trigger inputs.

1V, 2V, or 4V range for the upper rows, +5V and ±5V for the lower rows.

Common modulation input with an attenuverter per row.

The 4 trigger signals also go to an OR logic gate, which proves to be handy when using PV44 with percussion synthesizers or envelope generators.

Possible uses

- create 4 "instruments" out of a single percussion synth
- effects settings navigation
- pattern variation

Height3U
WidthPV44 : 20HP
Depth30mm
Max power+12V : 135mA
(w/ LEDs)-12V : 70mA
Tags: XODES , PV44
