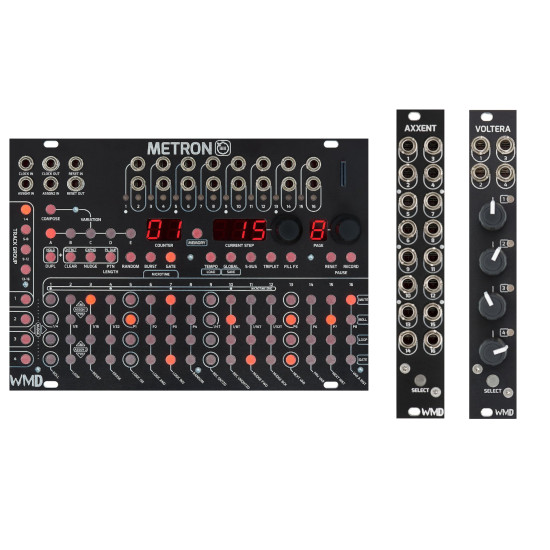

WMD METRON WITH 1 X AXXENT - 1 X VOLTERA

1 X WMD METRON

1 X WMD AXXENT

1 X WMD VOLTERA

WMD is proud to announce Metron, their most recent addition to their expansive line of eurorack modules. A trigger and gate sequencer at heart, Metron is posed to be the most advanced, live improv and performance friendly gate sequencer on the market.

Sign-up here to stay up-to-date on Metron news: http://eepurl.com/dF_61T

Metron is a 16 channel trigger and gate sequencer with loads of intuitive functionality, expansion capabilities, and the tools you need to create longer sequences with tons of variation at your fingertips.

Feature list
16 Channels of trigger and gate signals

View 4 channels at a time and easily switch views

Single track view lets you zoom in on a single track and see 64 steps at a time

Up to 256 step pattern length

Different pattern lengths per channel

Five instantly recallable and chainable variations

View and edit variations that are not playing for easy cue and non stop performance play

Save patterns to SD memory for easy recall on power cycle

No-stop loading from memory

Easy view memory previews lets yous see a pattern before loading from memory.

SD allows for easy update as well as easy back up / file transfer from unit to unit

FX / Fills for instant / momentary variation

2 assignable inputs for external CV control

Tap in patterns with quantized recording with the buttons or external source

Quick copy / paste / clear functions

Internal clock with Swing

dedicated reset output

Expendable for use with up to 4 units displaying a total of 64 steps at once!

MIDI Preset mode lets you send MIDI messages to other modules on the Doepfer CV bus. (for use with WMD SSM, Malekko Voltage Block, and more)

Random Pattern Generation

Probability per step and group proability functions

Burst per step for ratchet / roll sounds

Custom Fill Patterns for instant fills

Trigger Mutes

Beat repeat / step looping

Manual gates

Fully skiffable at 20mm deep!

So much more!

Accent Expander for METRON trigger and gate sequencer

AXXENT is an expander module for the METRON trigger and gate sequencer and adds 16 "accent" gate outputs. Each track is specifically tied to METRON tracks, making it a very intuitive addition to any METRON sequencing ecosystem.

Use AXXENT to send signals to additional envelopes, slews, drum accents, and other gate triggered functions.

• 16 additional gate outputs for METRON
• Accent tracks are tied to Metron tracks for ultimate inuitivity.
• Get back tracks once used for accents!
• Integrated user interface with METRON
• Easy to program and learn
• Fast tactile interface

SPECS
Dimensions:
Width: 4HP (20.32mm)
Height: Eurorack 3U (128.5mm Panel, 112mm PCB behind panel)
Depth Including Cables: 43mm
Power: 16 pin Eurorack standard power cable
Reverse Polarity Protected

Do not connect power to expansion headers.
Typical Power Consumption: +12V: 40mA, -12V: 0mA
Outputs:
Channel Outputs: 1-16: 470 ohm Impedance, 0V or 10V Logic High
Channels are simultaneously updated.

Regulatory:
RoHS, CE, & WEEE Compliant
Made with Lead Free solder and processes

CV output expander for METRON

Voltera is a voltage expander module for the METRON trigger and gate sequencer and adds 4 bipolar voltage tracks in 4hp. Up to 16 Volteras can be added to a single METRON giving you up to 64 CV Sequencing lanes for your Eurorack modular system!

With independent voltage ranges and quantize settings per track, Voltera allows for real time control over 4 different parameters at once, allowing you to dial that track to the parameter you are sequencing.

Sequence melodies, modulate parameters, and more with ease by adding Voltera to your METRON set up.

More info coming soon!

• 4 Bi-Polar Voltage outputs in 4HP
• Integrated user interface with METRON
• Quantized and Unquantized Voltages
• Stackable - up to 16 Voltera Modules to 1 METRON
• Independent voltage ranges per output
• Analog style programming
• Digital accuracy
• Fast tactile interface
• Stepped voltage recording
