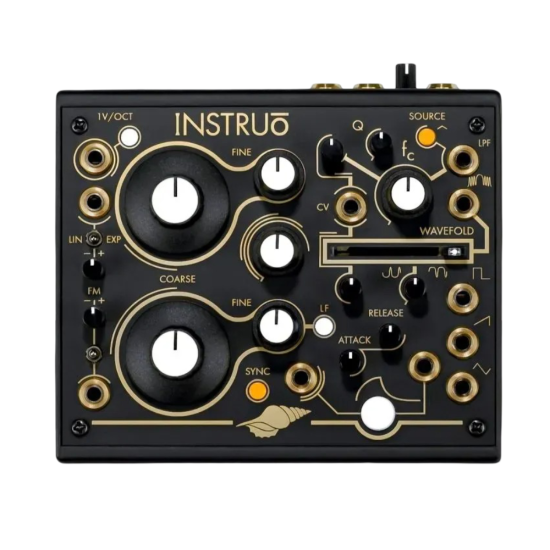

Instruo Seashell

Instruō Seashell introduces a new way of working with analogue synth voices.

A compact semi-modular system, pairing hands-on hardware with expansive control and configuration through dedicated software. Seashell offers seamless integration of Instruō hardware into existing workflows for professional sound design, music production, and live performance.

Description

Size

Width: 124mm
Height: 113mm
Depth: 51mm

Power

5V / 1A Centre Negative
(Power Supply Included)

Features

• Two sawtooth-core analogue voltage-controlled oscillators
• Analogue voltage-controlled wavefolder
• Resonant voltage-controlled low-pass filter
• Internal waveform routing to filter and wavefolder inputs
• Parallel modular level outputs
• Internal analogue cross FM modulation bus
• CV inputs for self patching and external modulation
• Stereo Line Level/Headphone output driver
• TRS MIDI input
• User-definable external CV input and output
• USB-C connectivity for audio/MIDI integration to DAW
• VST3/Software control interface expansion
• High resolution (14Bit) digital control over analogue circuitry
• Customisable scale transposition engine
• Total recall of digital controlled analogue parameters
• Internal LFO modulation sources
• Multi-function envelope generator
• Stereo diffusion effect
• 4×4 modulation matrix mixer with hardware macro control
• MIDI learn functionality
