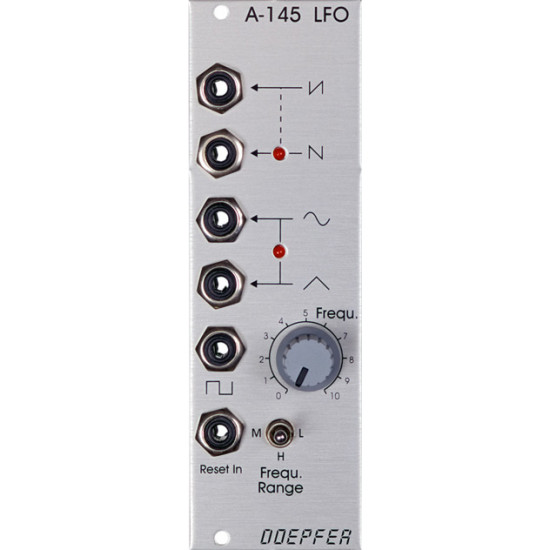

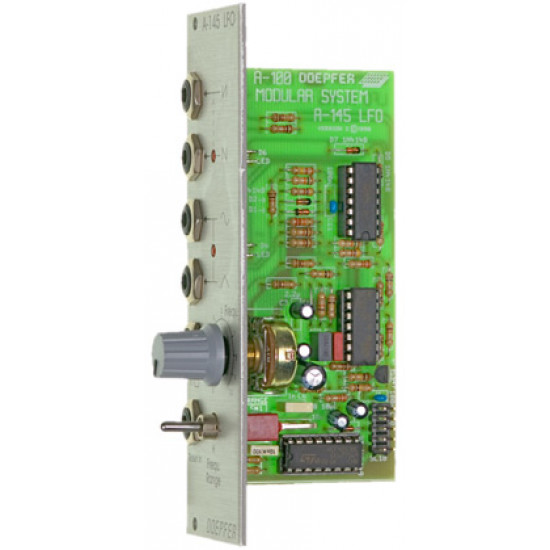

Doepfer A-145 LFO

Module A-145 is a low frequency oscillator, which produces cyclical control voltages in a very wide range of frequencies. Five waveforms are available: sawtooth, inverted sawtooth, triangle, sine and square wave.
The LFO can be used as a modulation source for any number of modules - for instance modulating the pulse width or frequency of a VCO, modulation of the cut-off frequency of a VCF, or amplitude modulation with a VCA.
A three-way switch lets you select three frequency ranges, spanning from one cycle every several minutes at the lowest, to moderate audio frequency at the highest (about 4-5 kHz).
The LFO signal can also be synchronised, via the reset input.

For more detailed information please look at the English user's manual A145_man.pdf


Breite/Width: 8 TE / 8 HP / 40.3 mm
Tiefe/Depth: 55 mm (gemessen ab der Rückseite der Frontplatte / measured from the rear side of the front panel)
Strombedarf/Current: +30mA (+12V) / -20mA (-12V)
