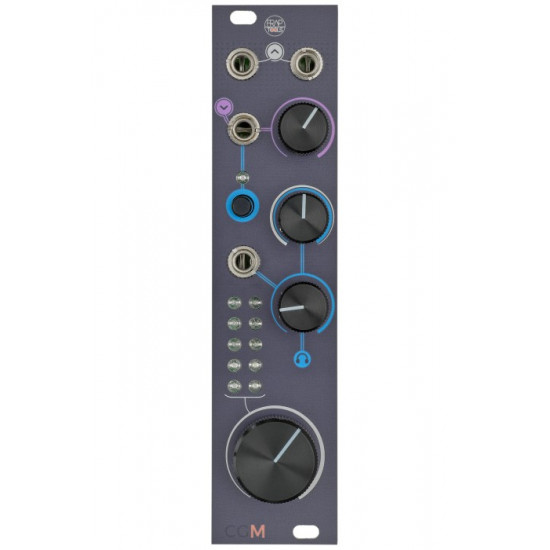

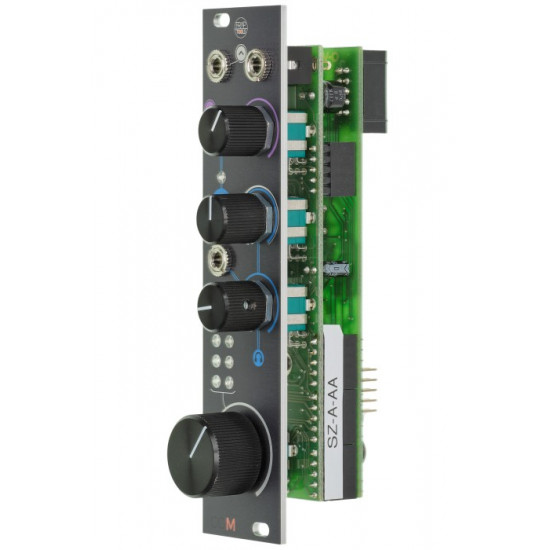

CGM Creative Mixer
- stereo main output
- PFL management for CGM system
- 1x 1/8″ stereo input with volume control and PFL latching button with LED input impedance > 3KΩ. Stereo input gain is 27 dB referred to master output.
- 1x 1/8″ stereo output for headphones with volume and blend between main and PFL signals (both stereo)
- 2×5 stereo VU meter [LED level from bottom -6dBu, -1dBu, +4dBu, +7dBu, +10dBu ]
- master fader
Current draw detail
Maximum drawing with VU and level headphones at max
For best performances, we suggest to keep at least a 25% margin on current draw.
- 62 mA +12V
- 44 mA -12V
- 0 mA 5V
- 43 mm deep
