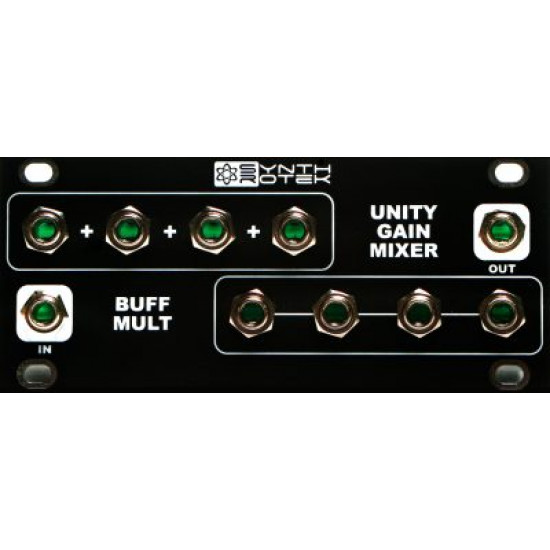

Synthrotek 1U Uni Buffer

The 1U UniBuffer combines a buff mult and a unity gain mixer into a 1U module.  It’s great for small cases where you want both functions available (like the Power Lunch).

The Buffered Multiple is a PRECISION buffered mult that is perfect for for 1V/O CV sources. The 1U Unity Gain Mixer adds input signals together and combines them for a summed output.

Features:

• Buffered Mult:
  • 1 input, 4 outputs
  • Precise voltage output for 1V/O sources
• Unity Gain Mixer:
  • 4 inputs, 1 output
  • Mixes AC signals (audio) and/or DC signals (gates, triggers, CV)
  • Input signal is not boosted or cut
  • Sum of inputs is the total output

Specifications:

• Current draw:
  • +12V: 14mA
  • -12V: 13mA
• Module Depth: 20mm
• Width: 20HP
• Polarity protected
