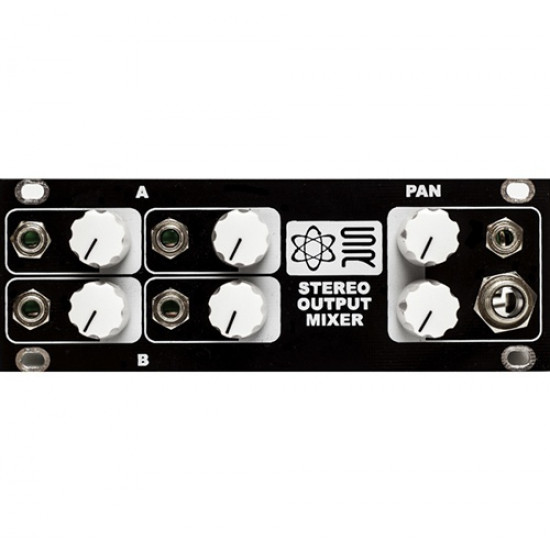

Synthrotek 1U Stereo Output Mixer

Synthrotek is proud to offer a line of 1U Eurorack powered modules for your modular synthesizer system. 20 and 24HP sized modules means that you can completely fill a 84 or 104 HP row with no extra modules or blank panels needed. Synthrotek’s waterproof cases come with a 1U row designed for utility, performance and beyond! Available as a complete factory assembled module, a kit and PCB/Panel combo. Synthrotek 1U Stereo Output Mixer The 1U Stereo Mixer is intended for pannable stereo output, but it is also suitable for both DC (Gates, Triggers and Control Voltage) & AC (audio) signals. Features: – 2 channels, 2 inputs per channel – Jumper select ~unity gain or gain ~x2 (6db boost) amplification – Mixes both AC signals (audio) and DC signals (gates, triggers, CV) – Stereo output with panning per channel – Attenuator and amplifier per channel – 1/4” and 3.5mm (1/8”) output jacks Specifications: Current draw: +12: 13mA, -12: 9.2mA Depth: 32mm Width: 24HP
