Synthrotek 1U Buffered Multiple

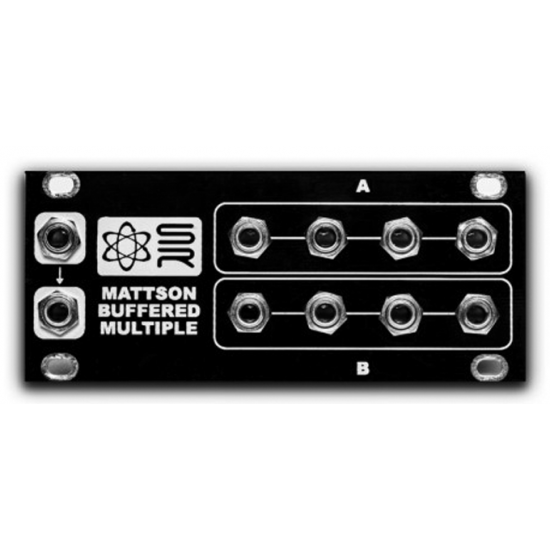

Synthrotek is proud to offer a line of 1U Eurorack powered modules for your modular synthesizer system. 20 and 24HP sized modules means that you can completely fill a 84 or 104 HP row with no extra modules or blank panels needed. Synthrotek’s waterproof cases come with a 1U row designed for utility, performance and beyond! Available as a complete factory assembled module, a kit and PCB/Panel combo. Synthrotek 1U Mattson Buffered Multiple The 1U Mattson Buffered Multiple is a PRECISION buffered mult that is perfect for for 1V/O CV sources. A signal plugged into Input 1 will be available from all 8 outputs. Break the chain by adding a second signal into input 2; signal 1 comes out 4 outputs and signal 2 is available to the other 4. Features: – 4 Channels – Channels 1 and 2 are 1 to 4 – Cascaded inputs: CH 1—>CH 2 Specifications: Current draw: +12 18mA, -12 18mA Width: 20HP Depth: 32mm
