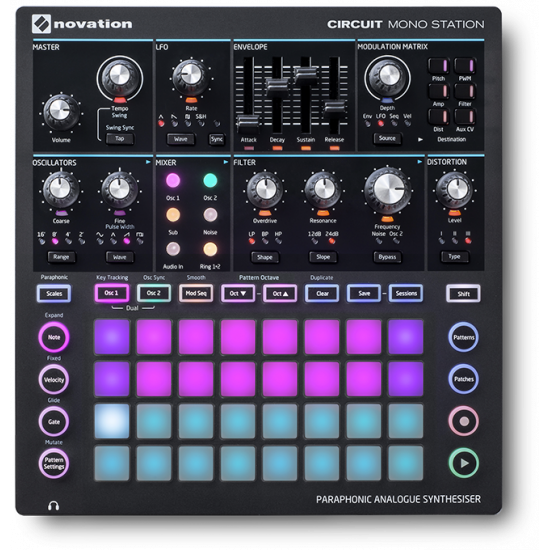

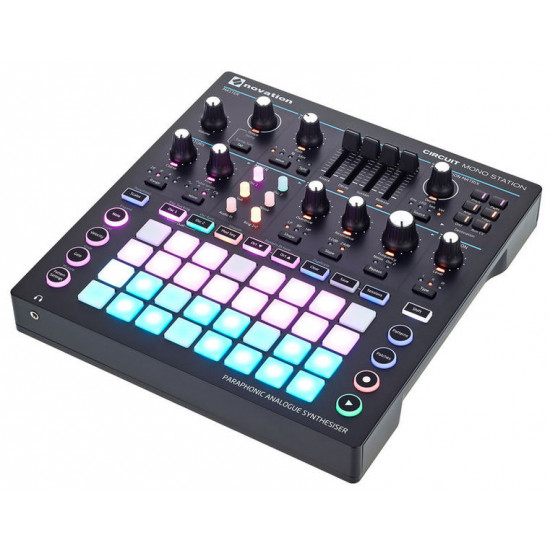

The Novation Circuit Mono Station is a paraphonic analogue synthesizer that originates from the Bass Station, with three sequencer tracks that benefit from the 32 velocity-sensitive RGB pads found on Circuit. The synth has two oscillators, three distortion modes, plus one multi-mode filter that can be high-pass, low-pass or band-pass.
With Circuit Mono Station, the sync and tuning parameters of its two oscillators can be individually controlled. The groovebox also offers four waveshapes (sawtooth, triangle, square and sample + hold), a sub-oscillator, ring modulation and noise generation. Users can get the frequency band they want by applying high-pass, low-pass and band-pass filters with slopes of 12dB and 24dB. In addition, Circuit Mono Station introduces a meaty overdrive.
Both monophonic and paraphonic modes are available, with each oscillator individually controlling its own sequencer. There is a choice of three sequencers: two oscillator sequencers and one modulation sequencer. Users can alter gate length, switch patterns instantly, choose sync rate and mutate patterns.
A four-by-eight modulation matrix makes it possible to route from LFO with four waveshapes, envelope, sequencer or velocity, enabling complex modulation for pitch, pulse-width, amp, filter, distortion or CV.

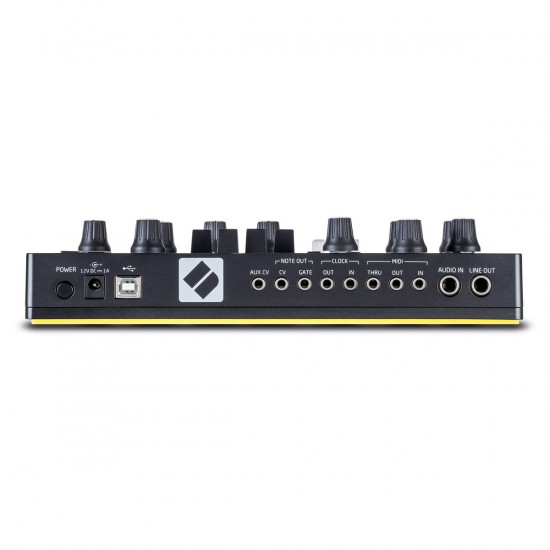

Up to 64 patches can be loaded and saved on the device, right at the user's fingertips. Circuit Mono Station controls separate hardware via CV, gate and modulation outputs, and has MIDI I/O, so other MIDI gear can be connected. Via USB, Circuit Mono Station can be plugged into Mac or PC, where unlimited patches can be managed using Components.
- Two oscillators with individual control of sync and tuning parameters
- High-pass, low-pass and band-pass filters with slopes of 12dB and 24dB
- Three distortion modes
- Choose monophonic or paraphonic modes with individual glide control
- Four-by-eight modulation matrix that enables complex alteration and routing
- Load and save up to 64 patches on the device
- A choice of three sequencers (two oscillator sequencers, one modulation sequencer)
- 32 velocity-sensitive RGB pads
- 16 scale types
- Changeable sync rates
- CV, gate and modulation outputs for controlling separate hardware
- Backup patches and sessions with Components
What's In The Box?
- Novation Circuit Mono Station
- USB cable
- 3 MIDI breakout cables
- Circuit Patches Sheet
- 12V DC power supply included
Peak Included Software:
- Ableton Live Lite music making software
- 4 GB of Loopmasters sounds and samples
