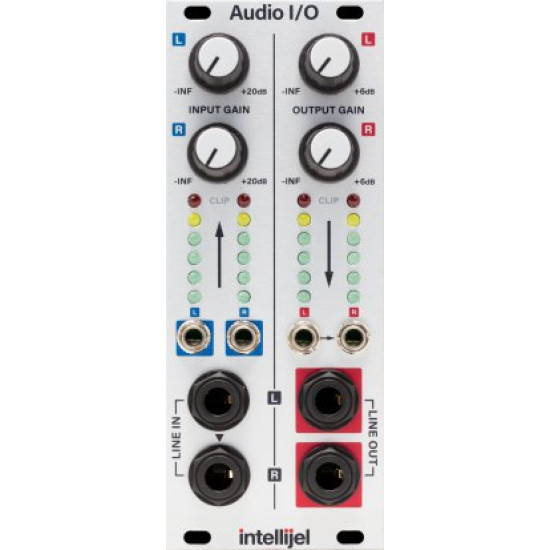

Audio I/O (formerly Audio Interface II) allows you to effectively interface your Eurorack modular system to the balanced line level world (+4 dBu). You can send and return to rack mount/desktop fx units, patch to external line level instruments like synths and drum machines, interface to a DAW and much more.
- 2 x Balanced TRS 1/4″ to Eurorack modular level input paths
- 2 x Eurorack modular level signals to Balanced TRS 1/4″ output paths
- 4 x six stage led VU meter to monitor all inputs and outputs simultaneously
- Input path has up to 20 dB of gain, which allows you to patch in low level consumer level signals and boost them.
- Output path steps a nominal Eurorack level (10 Vpp) down to +4 dBu with up to +6 dB gain
Width 10HP Depth 44mm Power 50mA @ 12V
(120mA max with all 24 LEDs on)
50mA @ -12V
