Erica Synths Pico EF

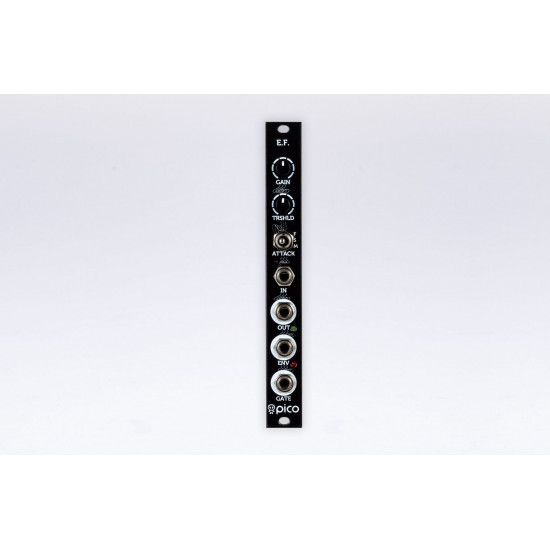

Pico EF is Erica Synths take on envelope follower module in 3hp! Pico EF features a preamp with +40dB gain (enough to boost even guitar and dynamic microphone signals for use in a modular system), envelope output with adjustable attack time and a gate output with adjustable threshold. The Pico EF can be used as a preamp, overdrive unit or for controlling VCFs with audio signal, or to use with external instruments to control your modular system in other creative and experimental applications.


Features

  • Preamp with adjustable gain
  • Audio overdrive possibility
  • Envelope follower with adjustable attack time
  • Gate extractor with adjustable threshold
  • Input protection against overvoltage
  • Protection against reverse PSU connection

Technical specifications:

Preamp boostup to +40dB
Audio output level10Vptp
Envelope output level0 - +10V
Gate level+5V
Power consumption25mA, -15mA
Module width3HP
Module depth35mm
