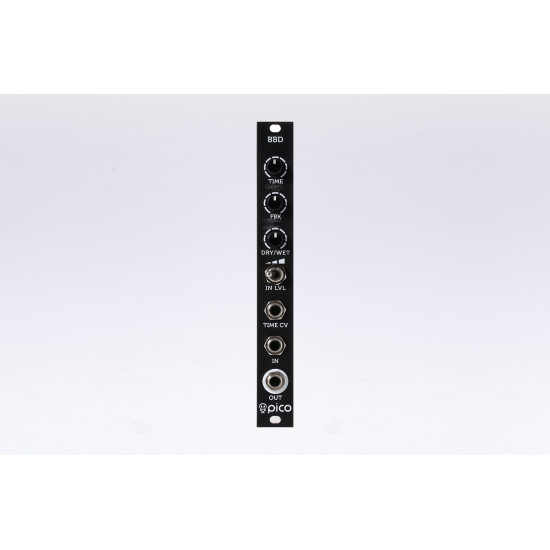

Erica Synths Pico BBD

Pico BBD is great sounding, full analogue 4092 stage bucket brigade delay module; the smallest BBD in eurorack. Besides nice flanger and delay effects, at full CW settings of TIME and feedback knobs it can produce extreme sonic artefacts. Take note that this BBD unit doesn't have any kind of post delay filter therefore the higher the delay time setting the higher the produced noise in the output!

Features

  • Full analogue circuit
  • 4092 stage BBD chip
  • Up to 300ms delay time
  • CV control over delay time
  • Input and output protection against overvoltage
  • Protection against reverse PSU connection

NB! Unlike on most BBD units, where noise is filtered off with LP filter at the output, thus permanently loosing higher frequency signals, this BBD unit doesn't have any kind of post delay filter therefore the higher the delay time setting the higher the produced noise in the output!

Technical specifications:

Delay timeup to 300ms
CV input level (full span)-5V - +5V
Power consumption+20mA, -9mA
Module width3HP
Module depth35mm
