Antelope Audio Zen Tour Synergy Core

  • 1,990.00€

Found Cheaper?

What’s New
Our professional desktop audio interface grows even more powerful. Without getting much bigger. Zen Tour Synergy Core brings the following upgrades from the original Zen Tour:

• 4x DSP + 2x FPGA Synergy Core low-latency effects and audio engine processors

• Improved AD/DA conversion – up to 130dB DNR, on par with Orion Studio Synergy Core

• 2x increase in channel count (32 channels at sample rates up to 192kHz)

• Thunderbolt™ 3 & USB 2.0 cross-platform connectivity for Mac / Windows

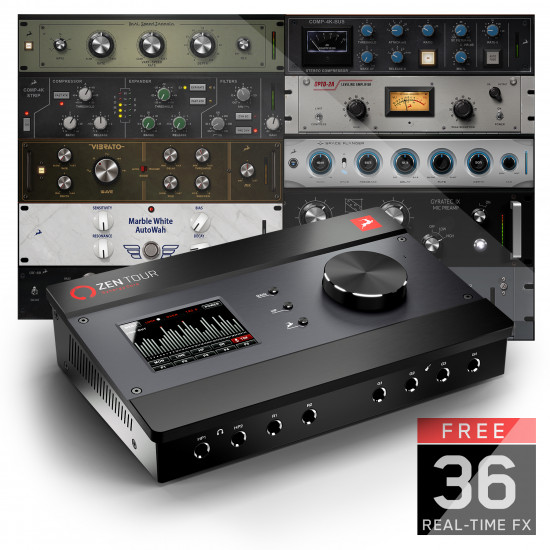

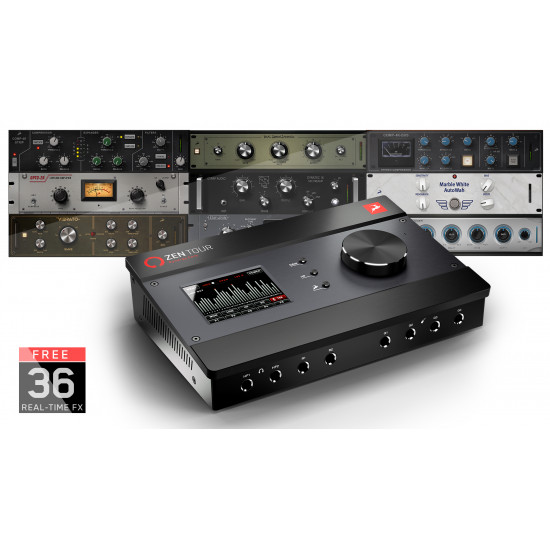

• Support for new Synergy Core-exclusive effects like Auto-Tune Synergy, Opto-2A, MES-432C, Comp-4K-Bus and others

• 8 DC-coupled line outputs for CV applications like controlling modular synthesizers

• Discrete ultra – linear microphone preamps


4x DSP + 2x FPGA Synergy Core FX Processing
14x18 Analog & Digital I/O
Thunderbolt™ 3 & USB 2.0 Connectivity
Discrete ultra-linear mic preamps
State-of-the-art AD/DA conversion
64-bit Acoustically Focused Clocking & Jitter Management algorithms
Mastering-grade Stereo monitor outputs
2 Individual Stereo headphone outputs
2 Transformer-based Reamp Outputs
ADAT & SPDIF digital I/O
8 Line outputs on DB25 connector (DC-Coupled)
Integrated Talkback microphone
Intuitive touchscreen control & software Control Panel with flexible signal routing
Analog Inputs
4x Instrument/Line inputs on TRS Jacks
4x Mic/Line inputs on TRS/XLR Combo Jacks
Analog Outputs
8x Line Outputs on DB25 (TASCAM Standard 25-pin Layout)
2x Monitor Outputs on TRS Jacks
2x Headphone Outputs on TRS Jacks
2x Transformer-based Reamp Outputs on TRS Jacks
All line outputs are DC-Coupled and support CV applications such as controlling modular synthesizers.
44.1/48 kHz – 8 inputs / 8 outputs
88.2/96 kHz – 4 inputs / 4 outputs
176.4/192 kHz – 2 inputs / 2 outputs
44.1 to 192 kHz – 2 inputs / 2 outputs
USB 2.0 - Type B Connector
(Up to 24 audio channels)
Тhunderbolt™ 3 - Type C Connector
(up to 32 channels)
Mic Preamps
EIN: -128 dBu
Dynamic Range: -121 dB
THD: -106 dB
Max input: +20 dBu
Max Gain: 65 dB
A/D Converter
124dB DNR
-110 THD+N
D/A Converter
127dB DNR
-106 THD+N
D/A Monitor Converter
130dB DNR
-115 THD+N
Sample Rates (kHz)
44.1, 48, 88.2, 96, 176.4, 192
4th Generation Acoustically Focused Clocking & Jitter Management
64-bit DDS

Operating Temperature
0-50°C, 32-122°F
Weight (Approx)
1.6 kg/ 3.5 lbs
Dimensions (Approx)
Width: 255 mm / 10.0”
Height: 62 mm / 2.4”
Depth: 168 mm /6.6”
Power Consumption
25 Watts
