Animal Factory Amplification Coma Reactor Module

The Coma Reactor is a dirty sounding delay effect with open feedback path. The module boasts the crunchy sounds of the PT2399 chip, but adds a number of useful routing possibilities that really open it up for sound mangling. Independent volume controls for dry, wet and effects return, allow you to blend in clean, delayed and effected sounds to suit your needs. The only CV input on the module increases or decreases the delay time, going from slight tape-echo effect to some truly seasick pitch shifting.

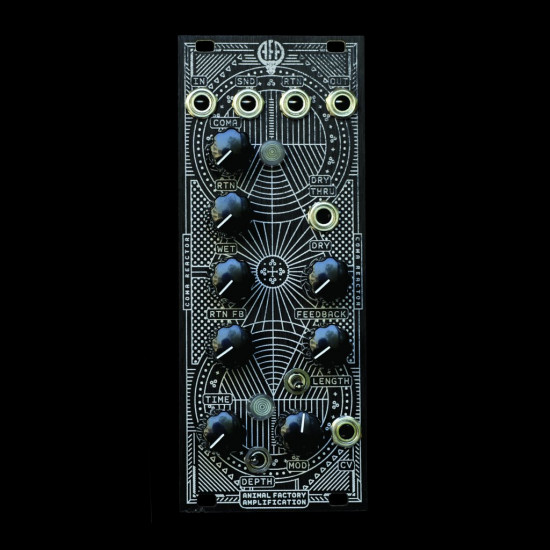

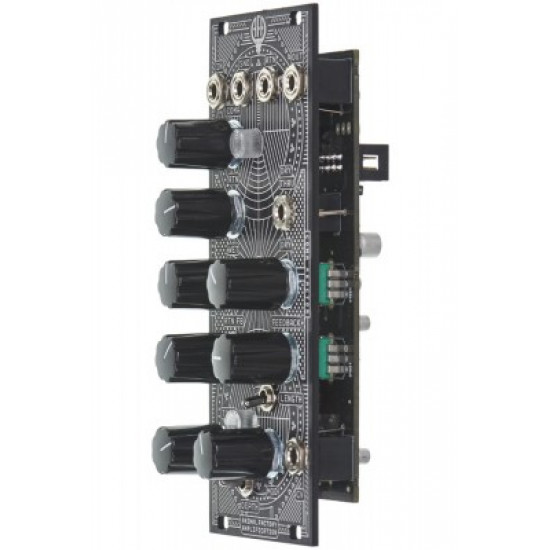

The Coma Reactor module from Animal Factory Amplification is an innovative delay with a variety of sonic possibilities.

It is based on a PT2399 delay chip and offers amazing routing and sound design options.

The Coma knob is an attenuator for the input signal. Low levels can generate funny noises. The input signal is mirrored at the Thru output, for further processing with another module.

There are separate dry and wet potentiometers to adjust the desired effect amount.

The delay time ranges from 30 to 2000 ms. It can be controlled manually via the Time knob or with control voltage thanks to the MOD input, which is equipped with an attenuverter and a switch for setting the amount of modulation. Furthermore there is a LED which indicates the CV polarity.

The delay features a feedback knob for controlling the repeats. Turned fully clockwise it will bring up self-oscillation.

Thanks to an integrated send/return path it is possible to use the module with external effects. The volume of the external effect is controlled by the Return potentiometer. If nothing is connected to send/return, the delay signal is routed internally through a crude twin-T Bandpass Filter. The effected signal can be fed back into the delay circuit thanks to a dedicated Return Feedback knob.

Audio input
Audio output
Audio send and return
Audio Thru
CV input

3U Eurorack module, 10 HP wide, 46 mm in depth
Power consumption: 100 mA at +12 V and 30 mA at -12 V
