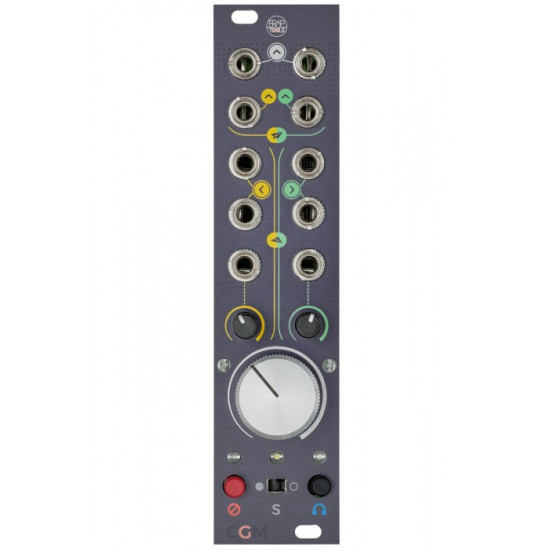

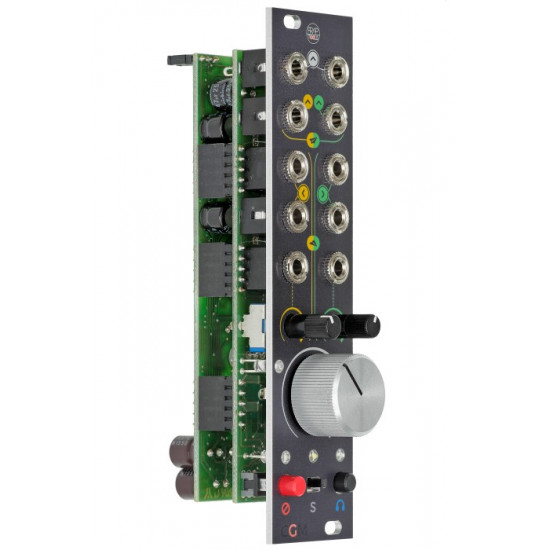

Frap Tools CGM Group Mixer

CGM Creative Mixer

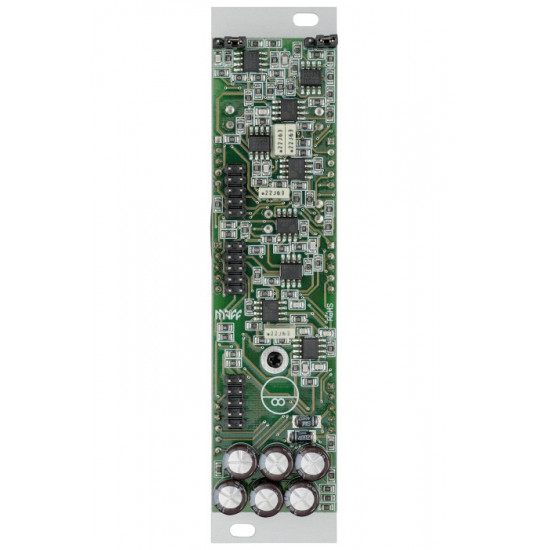

  • stereo group output for both return signals and any connected channel (or to output only the pre fader sum of the stereo return signals via 2 jumpers on the back of the module)
  • mono outputs for both 2 sends that sum all incoming audio routed from the connected channels
  • dual mono or stereo input for both of the 2 returns (input impedance > 20KΩ mono / > 40KΩ stereo)
  • stereo VCAs with attenuators for both of the 2 returns (CV input impedance 100 KΩ ±10%). Without any CV applied and all pot at maximum, gain scale, referred to group return inputs, is 9 dB on group output (jumpers allowing output of sum of channels and return)
  • fader
  • stereo peak LED
  • MUTE + PFL latching buttons with LED and solo in place SAFE switch with LED

Current draw detail
Idle drawing
80mA +12V
75mA -12V
Maximum drawing with heavy driven output onto low impedance load
120mA +12V
115mA -12V
For best performances, we suggest to keep at least a 25% margin on current draw.


http://frap.tools/mixer/

  • 80 mA +12V
  • 75 mA -12V
  • 0 mA 5V
  • 43 mm deep
