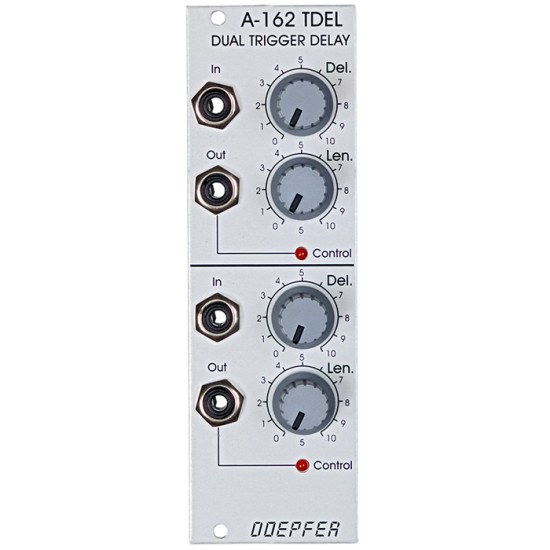

Doepfer A-162 Dual Trigger Delay

Module A-162 contains two identical circuits that generate a trigger signal with adjustable delay and lenght from an incoming rectangle signal (e.g. gate, trigger, rectangle output of an LFO or VCO). The rising edge of the incoming signal is used to trigger the new trigger signal. This module makes it possible to delay the onset of a trigger pulse, and also change its length.
On each of the two units, two controls can alter the onset time and duration of triggers, from about 2 ms up to more than 10 seconds. A control LED shows the generated signal.

For more detailed information please look at the English user's guide as pdf file.

Remark: By request the time range of delay and/or length can be modified very easily by changing the value of a capacitor, e.g. 200 us...1 s or 20 us ... 100 ms or 2us ... 10ms. That way the module can be used also for audio applications. If you want to modify the module yourself please read this document: Timing capacitors of A-100 modules.

A voltage controlled version of a trigger delay can be realized with the module A-142 Voltage Controlled Decay/Gate.


Breite/Width: 8 TE / 8 HP / 40.3 mm
Tiefe/Depth: 45 mm (gemessen ab der Rückseite der Frontplatte / measured from the rear side of the front panel)
Strombedarf/Current: +40mA (+12V) / -0mA (-12V)
